Quick Details

  • Material: Nylon / Cotton
  • Supply Type: Make-to-Order
  • Type: Mesh Fabric
  • Pattern: Reflective fabirc
  • Style: Reflective
  • Width: 5CM/1M
  • Technics: Knitted
  • Knitted Type: Other
  • Use: Cleaning Cloth, Costume, Garment, Home Textile, Jacket, Sportswear, Uniform, Other
  • Feature: Waterproof
  • Yarn Count: xxx
  • Density: xxx
  • Weight: xxx
  • Certification: EN ISO 20471, ANSI 107
  • Place of Origin: China (Mainland)
  • Model Number: RF-HW506030
  • Backing Material: TC/ Polyester
  • Color: Silver/ grey
  • Reflecting Color: White
  • Max width: 100cm
  • Technology: Glass bead
  • Home Washing: 50 Cycles @ 60°C per ISO 6330 Method 2
  • Dry Cleaning: 30 Cycles per ISO 3157
  • Meet Standard: EN ISO 20471/ ANSI 107
  • Sample: Yes
  • Customized Design: Yes

Packaging & Delivery

Packaging Details: Carton Packing/ OEM
Delivery Detail: 3-15 Days

Specifications

1. TC Backing
2. Silver Color
3. EN ISO 20471 Standard
4. ANSI 107

V-REFLEX™ Reflective Material

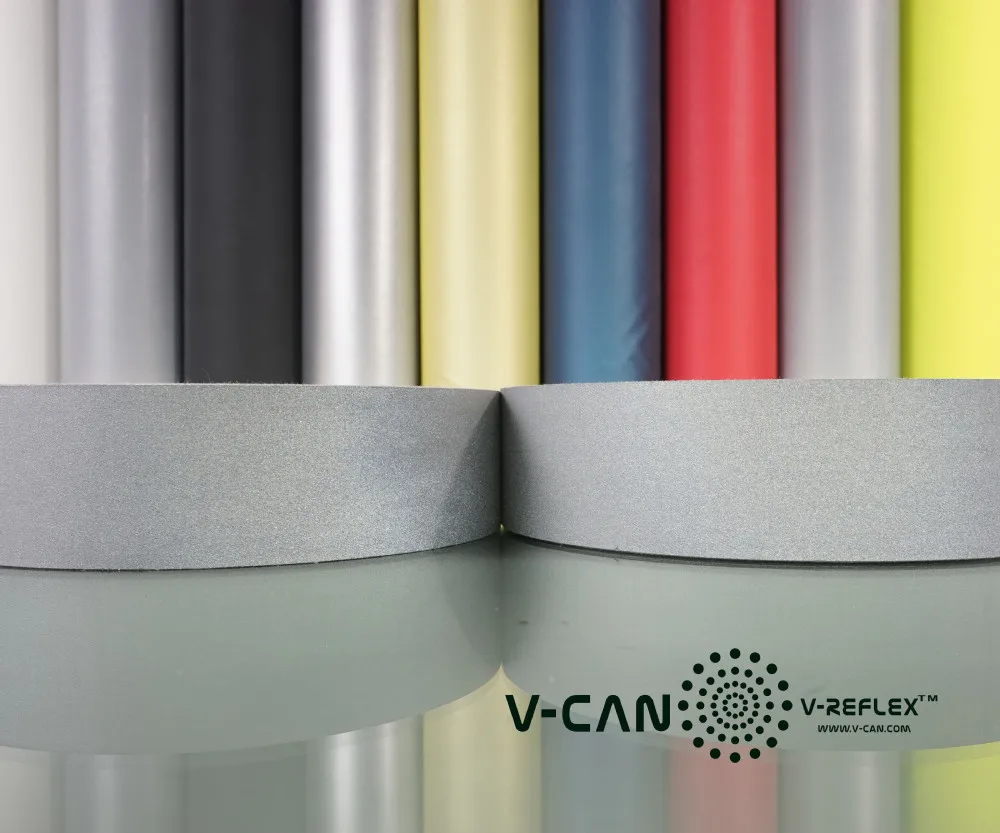

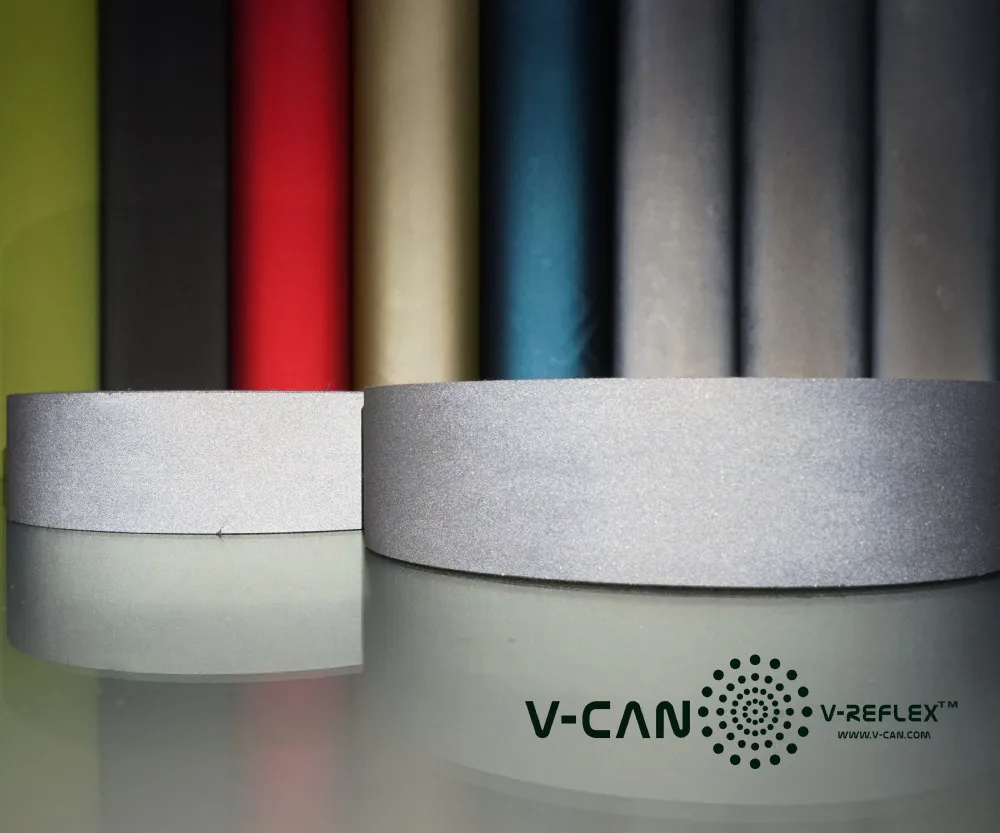

Silver Reflective Fabric



V-REFLEX ™ Reflective Material— Silver Reflective Fabric is intended for the application on high-visibility warning clothing such as occupational work wear, consumer garments and accessories to enhance the visibility of the wearer during darkness and low light conditions. The fabric will appear brilliant white, when illuminated by vehicle headlights, even when the wearer is situated at the side of the road.



Product Features

  • Approved to EN ISO 20471:2013
  • Approved to ANSI 107 Level 2
  • Backing Fabric: T/C
  • Day time Color: Silver
  • Reflective Color: White
  • Max width: 100cm
  • Glass bead technology
  • Is non-orientation sensitive
  • Offers 60°C domestic wash durability, 50 cycles per ISO 6330 Method 2
  • Offers good dry cleaning durability, 30 cycles per ISO 3175 Method 8.1
  • Is manufactured within an ISO 9002 controlled manufacturing environment

Physical Performance

V-REFLEX Reflective Material - RF-HW506030 Silver Reflective Fabric meet or exceed the following specifications as noted. All RA values are over 100 cd/lux/m2 measured at +5.0° entrance angle and 0.2° observation angle after tests are carried out according to following test methods

Physical Performance

Test Method

Retro-reflectivity (initial)

ANSI-ISAE 107-2010 level 2 , EN ISO 20471

Abrasion: R 100

5000 cycles (EN 530 Method 2)

Flexing : R100

7500 cycles (ISO 7854 Method A)

Cold Fold : RA  100

-20° (ISO 4675)

Temperature Variation : 100

50 hours @ 50°C and 20 hours @ -30°C

Wash RA100

50 cycles @ 60°C (ISO 6330 Method 2)

Dry-Cleaning : RA 100

30 cycles (ISO 3175 Method 8.1)

Wet Reflectivity : RA 100

ANSI-ISAE 107-2010, EN ISO20471



Product Application

  • Clothing intended for non-excessive wash- and wear-impact, e.g. high visibility garment class 3.
  • Clothing for pedestrians, joggers, cyclists and children.
  • Head-, arm-, leg-bands, gloves, footwear, webbing, pipings, belts, back packs, emblems and logos.

Cutting

Die-cutting is recommended, although it can also be hand-cut or guillotined.

Note: Use very sharp cutting knives only and cut from the reflective side.



Sewing

For the best results, sew in place using a lockstitch and with no more than 12 stitches per inch (2.54 cm), and not less than 5/64” (2 mm) from the edge of the reflective fabric. Recommend for applying to light and medium weight fabrics.



Printing

Screen Printing - Images may be printed on the surface of V-REFLEXTM Reflective Material - Reflective Fabric. All inks should be continuously tested to ensure acceptable adhesion in the event of change occurring in the manufacturing process or composition of the ink. Prior to printing, wiping the surface with a soft cloth lightly dampened with isopropyl alcohol may help ink adhesion. Printed areas will not be retro-reflective.



Sublimation Printing - This printing method is applicable to V-REFLEXTM Reflective Material - Reflective Fabric.



Home Washing

Wash temperature range: 0°C to 60°C

Max. wash time at highest wash temperature: 12 minutes

Max. programme time: 50 minutes





Max Machine Wash Warm

60 °C (140 °F)

Tumble Dry Low

Iron Low Heat

Do Not Bleach



Do not use additional bleach

Ÿ   No chlorine bleach.

Ÿ   No bleaches on oxygene basis (e.g. sodium perborate bleaches).

Ÿ   Do not store a wash batch even in a low concentration of bleach.

Drying Conditions

Tumble Dryer:

Ÿ   Tumble drying should be performed in a commercially available household dryer using the medium dry setting.

Ÿ   Exhaust temperature should not exceed 60°C.

Ÿ   Do not over-dry.

Ÿ   Damp dry only.

Air Drying

Ÿ   Line drying is recommended where possible.

Ironing Conditions

Ÿ   Use medium setting, use press cloth.

Ÿ   Do not apply steam.



Product Storage

  • Store in a cool, dry area and use within 1 year of receipt.
  • Rolls should be stored in their original cartons, whilst partially used rolls should be returned to their carton or suspended horizontally from the core via a rod or pipe.
  • Cut sheets should be stored flat.

Special Cleaning Instructions

  • For application on rainwear, a regular fluorocarbon treatment of the garment is recommended.
  • Chemical splashes should be removed with a soft, dry cloth. Cleaning the garment the same day is recommended.
  • Splashes of strong acids or alkalis should immediately be neutralised with plenty of water.
  • Contamination with toxic or poisonous substances or biocontamination will require the application of a specific decontamination process.
  • Application of high alkaline products, high pH-products, bleaches etc. is not recommended.
  • Do not overdry. The temperature of the material should not exceed 60°C at any time during drying.

 Maintenance Misuse

  • No harsh mechanical treatment, e.g. abrasion with wire brushes or sand paper.
  • No uniform coating or spraying of oils, protective waxes, inks or paint.
  • No application of products such as leather spray or shoe shine.

Specific Safety Information

Various environmental factors, like line of sight, rain, fog, smoke, dust and visual noise can influence visibility.

The brightness of V-CAN V-REFLEX ™ Reflective Material - RF-HW506030 Silver Reflective Fabric can also be diminished in extreme weather conditions.

  • Test results show, that RF-HW506030 Silver Reflective Fabric exceeds the retro-reflective performance requirements in rainfall conditions as defined in EN ISO 20471. Initial brightness levels return as the material dries.
  • Fog, mist, smoke and dust can scatter the light from headlights, the wearer must be aware that detection distance will be severely reduced.
  • Visual noise (contrast variations in the visual field) decreases the contrast of the reflective material with the background and affects the visibility in low-light conditions.
